The FMB010 GPS tracker is a compact Plug & Track GPS tracker designed for easy vehicle monitoring. With simple OBD installation, the device offers real-time tracking supported by GPS/GLONASS, GSM, and Bluetooth connectivity. Reliable and user-friendly, it provides accurate data on vehicle location and performance without the need for complex installation or training.
Teltonika FMB010 GPS Vehicle Monitoring
Teltonika FMB010 vehicle tracking device – PLN 299 net
GOLD server (PL) – PLN 19 net / month, no contract
GOLD PLUS server (PL + EU) – PLN 9 net / month, no contract
Teltonika FMB010 GPS tracker
A simple real-time Plug & Track module with GPS, GSM, and Bluetooth connectivity, connected to the vehicle’s OBD service port.

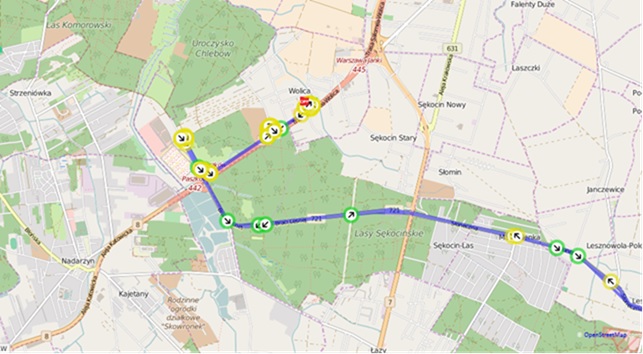

Parameters on the map:
The device records the route traveled by the vehicle, generating a point based on one of three events:
– when the vehicle makes a turn
– when one minute has passed
– when it has traveled 1,000 meters
The system is simple, intuitive, and requires no training.
TECHNOLOGY
- GPS
- GPRS
- SMS
- Bluetooth
HARDWARE
- 1× Micro-SIM card
- Internal GSM antenna
- Internal GNSS antenna
- OBD II connector
- 1× Digital Input (DIN)
- Accelerometer
- Battery: 170 mAh Li-ion 3.7 V
- IP41 protection rating
- 1 MB internal memory
- MicroSD support
- Power supply: 10–16 V DC
- USB 2.0 interface
SOFTWARE
- NITZ time synchronization
- Configuration via Bluetooth
- Geo-fence
- Sleep mode
- FOTA (Firmware Over The Air)
- GPRS commands
- NTP time synchronization
- SMS event alerts
- Idling detection
- Malfunction detection
- Odometer
- Motion detection
- Remote configuration via SMS
- Auto Geofencing
GSM
- Quad-band: 900/1800 MHz; 850/1900 MHz
- GPRS Class 12 (up to 240 kbps)
- SMS (text/data)
- Micro-SIM format
BLUETOOTH
- Bluetooth specification V3.0
- Fully compliant Bluetooth transceiver for external peripherals
- Configuration via Bluetooth
- Bluetooth sensors support
GPS/GLONASS
- Tracking: 33 / 99 acquisition channels
- Sensitivity: –165 dBM
- Hot start < 1s
- Warm start < 25s
- Cold start < 35s
- NMEA-183 protocol
- Supports: GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS
- Accuracy: < 3 m
INTERFACE
- 1 Digital Input reserved for ignition status monitoring (depends on vehicle type)
- Accelerometer
- Power supply: +10…+16 V DC
- Integrated back-up battery
- Internal high-gain GSM antenna
- Internal high-gain GNSS antenna
- Dimensions: L (50.7 mm) × W (49.6 mm) × H (25 mm)
- 2 status LEDs
- Configuration and firmware updates (FOTA & via cable)
